PUCH G SNORKEL KIT

Look 280 CDI

9095001000

Puch
G-class with fix windshield
Pin Unpin
€ 542.13
(excl. VAT.)
Available
+-

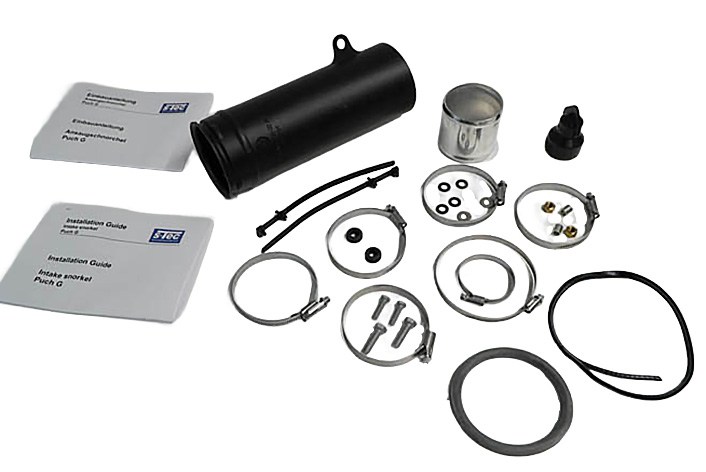

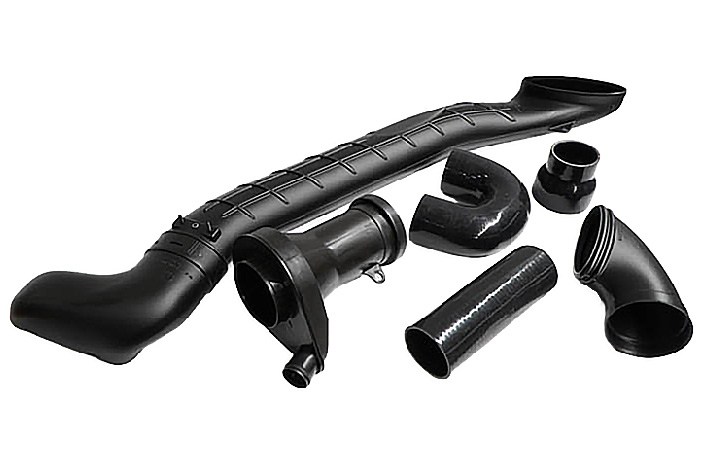

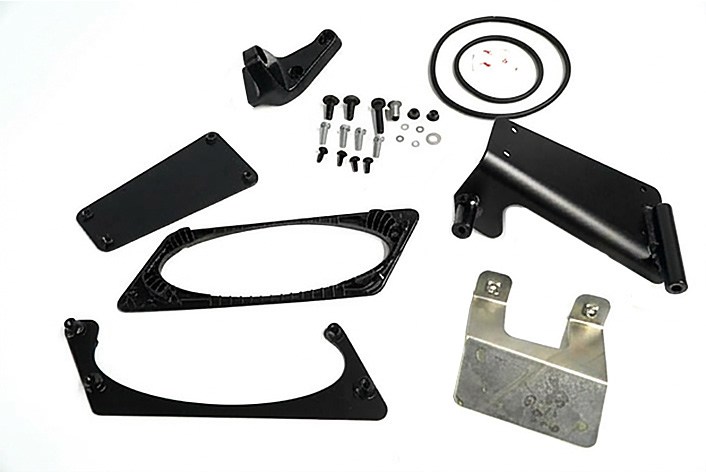

This set includes:
1x WATER SEPARATOR FRONT
1x ELBOW 90 DEGREE AIR SUCTION
1x AIR INTAKE FITTING
1x BRACKET AIR INTAKE FITTING OUTSIDE
1x SUPPORT PLATE INTAKE FITTING BELOW UPPER PART
1x MOLDED SEAL FOR AIR SUCTION ON ELBOW
1x BRACKET AIR INTAKE PIPE ABOVE
1x BRACKET FOR AIR INTAKE PIPE
1x SUPPORT PLATE INTAKE FITTING BELOW LOWER PART
1x MOLDED SEAL PIPE BEND ON INTAKE PIPE
1x PROTECTIVE FILM F AIR INTAKE SELF-ADHESIVE
4x SCREW M6X20
1x SCREW M8X35
1x DISC
1x RIVET NUT 8X16
2x NUT M6
2x SCREW M8X20
4x SCREW M5X12
4x DISC
1x COVER-PROTECTIVE FILM SELF-ADHESIVE
1x BRACKET AIR INTAKE (OM612)
2x SCREW M6X25
2x WASHER 6.4
2x SOCKET H = 12MM D = 10MM
2x DOOR OPEN 20X11X16MM
4x WASHER A8 ZNB4
2x SCREW M8X30-8.8
2x NUT M8 (ITS.)
1x WATER SEPARATOR
1x O-RING D = 98X10MM (MOSS RUBBER)
1x REDUCER D = 102 / 76MM (SILICONE)
1x CLAMP 90-110X9MM
1x DRAIN VALVE
1x CLAMP 40-60x9MM
1x SILICONE HOSE D = 76MM L = 250MM
2x ALU CONNECTOR D = 76MM L = 75MM
1x HOSE ELBOW 180 DEGREES
5x CLAMP 70-90X13MM
1x EDGE PROTECTION 500MM
2x CABLE TIES L = 210X9MM
1x TEMPLATE SET DE / EN
1x INSTALLATION INSTRUCTIONS DE
1x INSTALLATION INSTRUCTIONS EN
useable for
Mercedes-BenzG-Class200 GE (460)
Mercedes-BenzG-Class230 G (460,2)
Mercedes-BenzG-Class230 GE (460,2)
Mercedes-BenzG-Class230 GE (461.238, 461.239)
Mercedes-BenzG-Class240 GD (460,3)
Mercedes-BenzG-Class250 GD (460,3)
Mercedes-BenzG-Class250 GD (461)
Mercedes-BenzG-Class280 GE (460,2)
Mercedes-BenzG-Class290 GD/G 290 D (461.337, 461.338)
Mercedes-BenzG-Class300 GD (460,3)
PuchG-Class230 GE (Radstand 2850mm Planenverdeck 3-türig)
PuchG-Class250 GD (Radstand 2400mm fester Aufbau 3-türig)
PuchG-Class250 GD (Radstand 2850mm fester Aufbau 5-türig Funkwagen)
PuchG-Class250 GD (Radstand 2850mm fester Aufbau 5-türig)
PuchG-Class290 GD (Radstand 2850mm fester Aufbau 5-türig Sonderschutz)
PuchG-Class300 GD (Radstand 2400mm fester Aufbau 3-türig)
PuchG-Class300 GD (Radstand 2850mm fester Aufbau 5-türig Funkwagen)
PuchG-Class300 GD (Radstand 2850mm fester Aufbau 5-türig)
