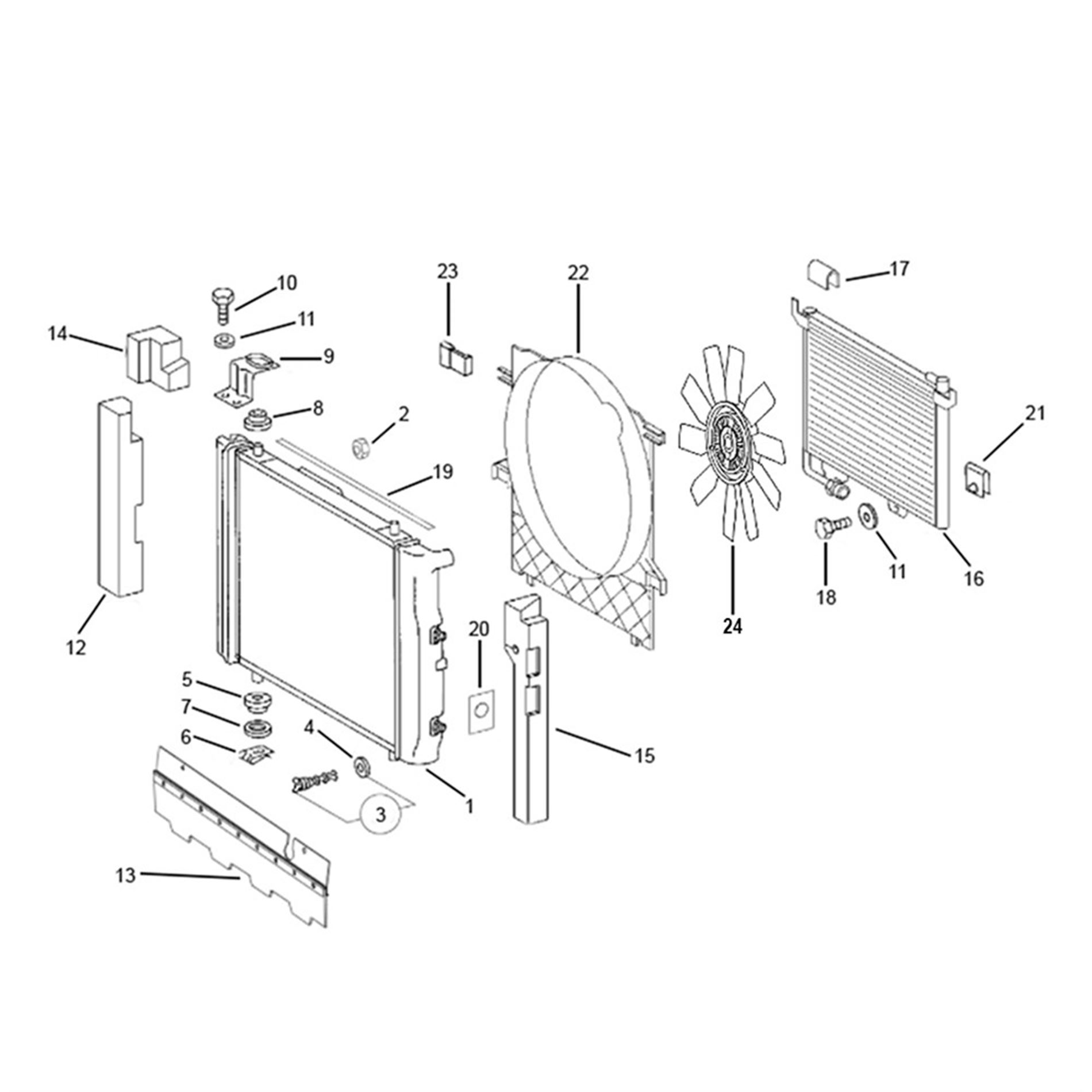

1

WATER COOLER

4615000102
Pin Unpin
1,158.40
(excl. VAT.)
Available
+-
2

NUT M16X1.5X5MM

0039901651
Pin Unpin
1.70
(excl. VAT.)
Available
+-
3

DRAIN PLUG L=64.2 MM

0005000185
Pin Unpin
No purchase possible
4

DISC AD=18 MM

0005010176
Pin Unpin
2.11
(excl. VAT.)
Delivery time on request
+-
5

RUBBER INSERTS

1635010181
Pin Unpin
5.00
(excl. VAT.)
Available
+-
6

FUSE 34.3X28X16 MM

0000000056-49
Pin Unpin
4.84
(excl. VAT.)
Available
+-
6

SECURITY CLIP 25X16 MM

0000000069-63
Pin Unpin
2.70
(excl. VAT.)
Available
+-
7

SEAL RING

1860530253
Pin Unpin
8.74
(excl. VAT.)
Available
+-
7

WASHER 32X15X1,5MM

0089907182
Pin Unpin
2.78
(excl. VAT.)
Available
+-
8
4.11
(excl. VAT.)
Available
+-
9

BRACKET

4635041440
Pin Unpin
7.56
(excl. VAT.)
Delivery time on request
+-
10

HEXAGON SCREW M6X16-8.8

3040170060-16
Puch
Pin Unpin
11

WASHER 6.4X12X1.6MM

0001250064-49
Puch
Pin Unpin
1.45
(excl. VAT.)
Available
+-
12

ABDICHTUNG

4615011200
Pin Unpin
64.39
(excl. VAT.)
Delivery time on request
+-
12

ABDICHTUNG

4615011400
Pin Unpin
64.39
(excl. VAT.)
Delivery time on request
+-
12

ABDICHTUNG

4615011100
Pin Unpin
65.67
(excl. VAT.)
Delivery time on request
+-
12

ABDICHTUNG

4615011300
Pin Unpin
64.39
(excl. VAT.)
Delivery time on request
+-
12

SEALING TO COOLER RH

4635010280
Pin Unpin
37.48
(excl. VAT.)
Available
+-
14

GASKET

4639871651
Pin Unpin
8.90
(excl. VAT.)
Available
+-
15

SEALING TO COOLER LH

4635010180
Pin Unpin
24.92
(excl. VAT.)
Available
+-
16
925.00
(excl. VAT.)
Delivery time on request
+-
17
16.80
(excl. VAT.)
Delivery time on request
+-
18

SCREW M6X16-8.8

9101430060-01
Pin Unpin
1.85
(excl. VAT.)
Available
+-
20

SEAL

4639870551
Pin Unpin
No purchase possible

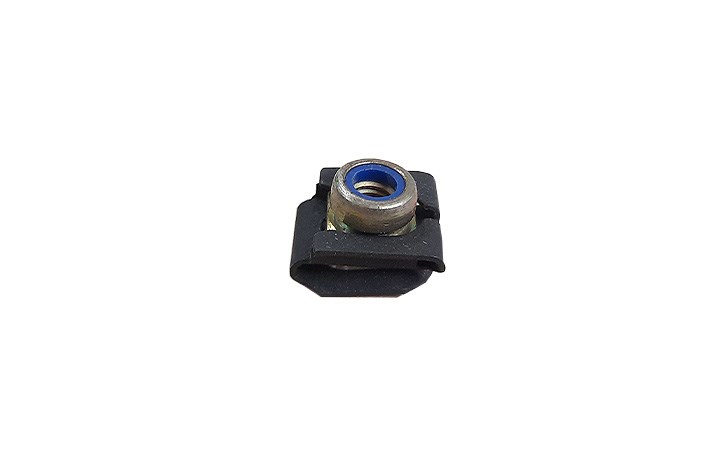

21

NUT

0009907191
Puch
Pin Unpin
6.02
(excl. VAT.)
Available
+-
22

FAN COVER

4615050355
Pin Unpin
62.46
(excl. VAT.)
Available
+-
23

CLIP NUT 30X14MM

1235040246
Pin Unpin
1.66
(excl. VAT.)
Available
+-
24

BLOWER

0002007323
Pin Unpin
159.00
(excl. VAT.)
Available
+-
