1

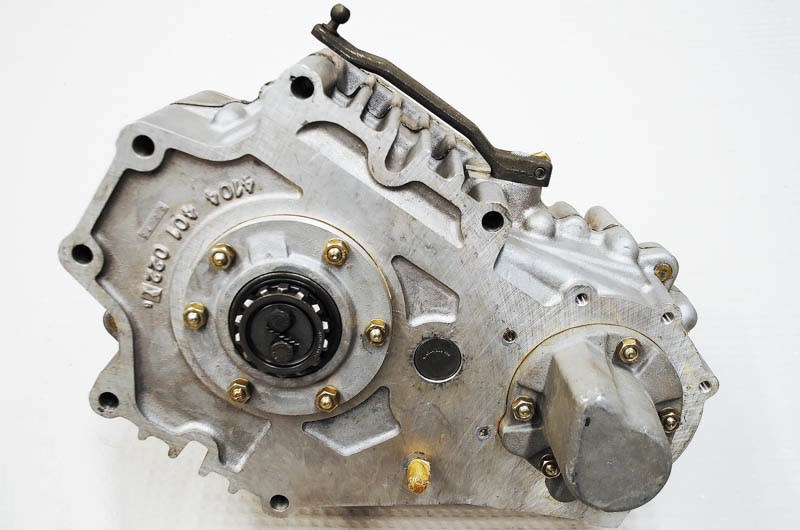

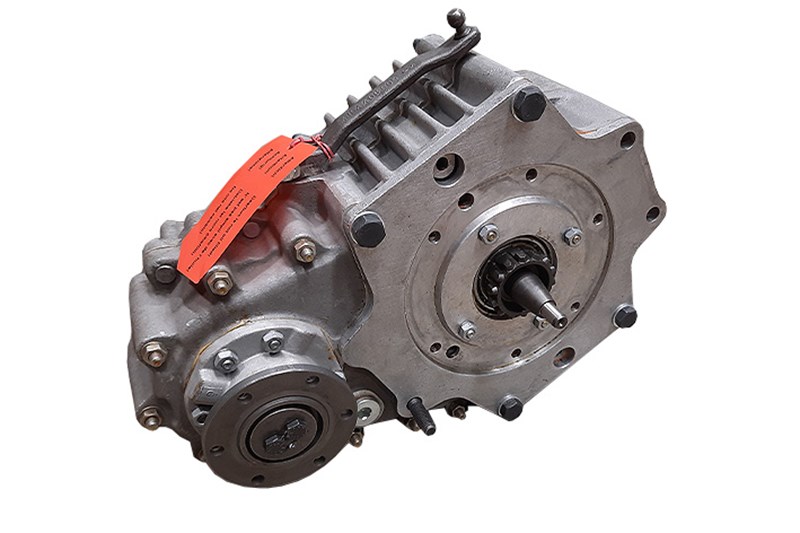

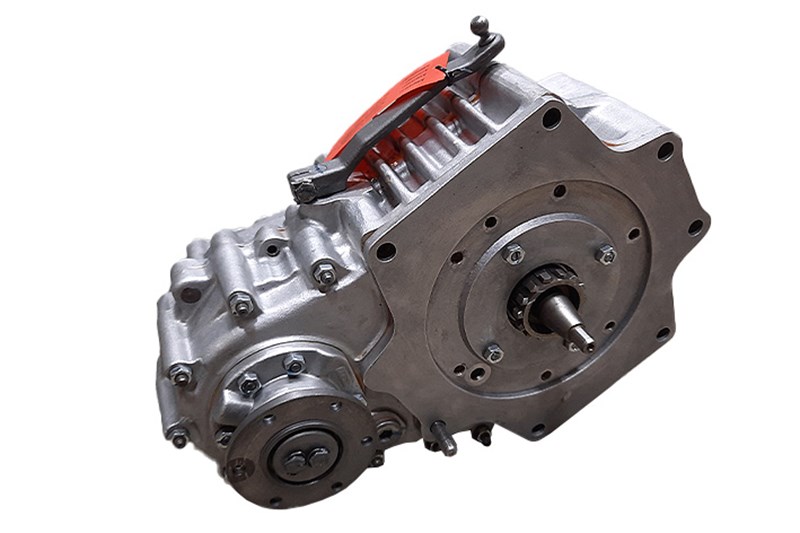

TRANSFER GEAR BOX CPL 4X4

7103223200-80
PuchS-Tec transfer case reconditioned, all parts checked and replaced if necessary.

Attention: NO oil filled!

due the transport, we cannot deliver the gearbox with oil filled, the oil level MUST be filled and checked after installation! (observe manufacturer information)

to ensure that you get the right part, we need your vehicle-identification-number please!

IMPORTANT:
Please send the entire old part to us for inspection, if the old part is complete you will receive a refund of your deposit.

In the event of an incomplete return, we will contact you immediately.
Pin Unpin
3,290.00 excl. € 800.00 Pledge
(excl. VAT.)
Available
+-
2

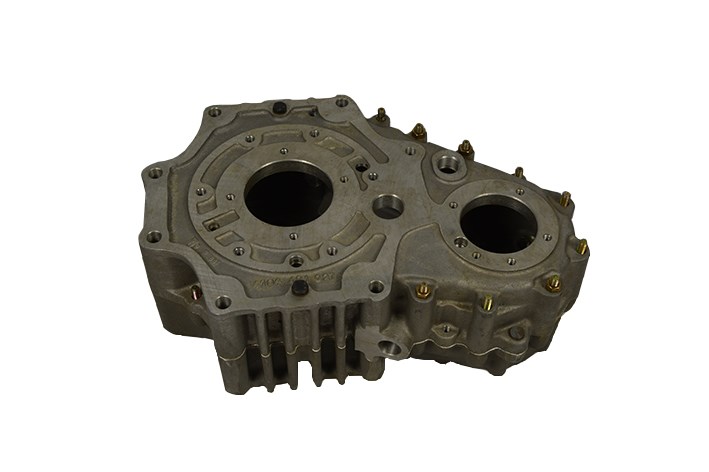

TRANSFER CASING CPL

7101215800
Puch
Pin Unpin
1,165.86
(excl. VAT.)
Available
+-
2

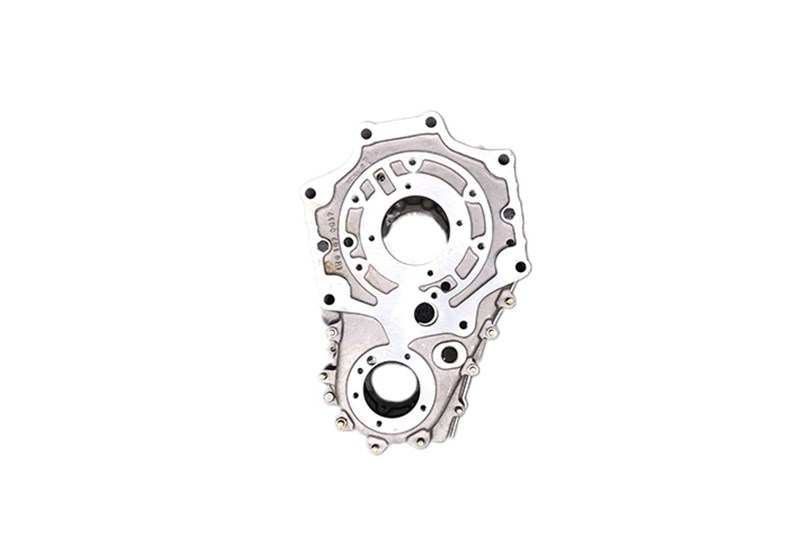

TRANSFER CASING CPL

7101215900
Puch
Pin Unpin
744.83
(excl. VAT.)
Available
+-
3

SLIDE PIECE

7101245641
Puch
Pin Unpin
8.25
(excl. VAT.)
Available
+-
4

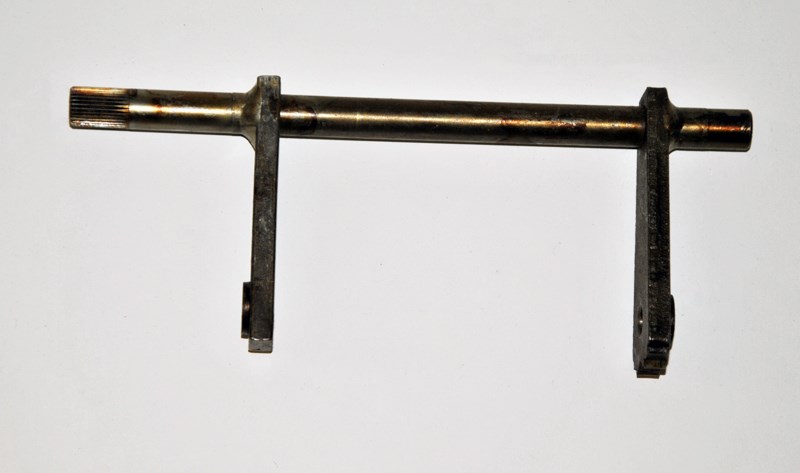

BRACKET

7102245702
Puch
Pin Unpin
141.24
(excl. VAT.)
Available
+-
5

HEXAGON SCREW M8X20-8.8

D009330102
Puch
Pin Unpin
1.21
(excl. VAT.)
Available
+-
6

LOCKING PLATE

9003608
Puch
Pin Unpin
2.47
(excl. VAT.)
Available
+-
7

SEALING RING DC14x22x4

9023805
Puch
Pin Unpin
41.58
(excl. VAT.)
Available
+-
8

GEAR LEVER

7101245662
Puch
Pin Unpin
83.17
(excl. VAT.)
Available
+-
9

SPRING

7101245091
Puch
Pin Unpin
2.24
(excl. VAT.)
Available
+-
10

SELECTOR PIN

7102245761
Puch
Pin Unpin
17.41
(excl. VAT.)
Available
+-
11

SLIDING STONE

7102245081
Puch
Pin Unpin
4.08
(excl. VAT.)
Available
+-
12

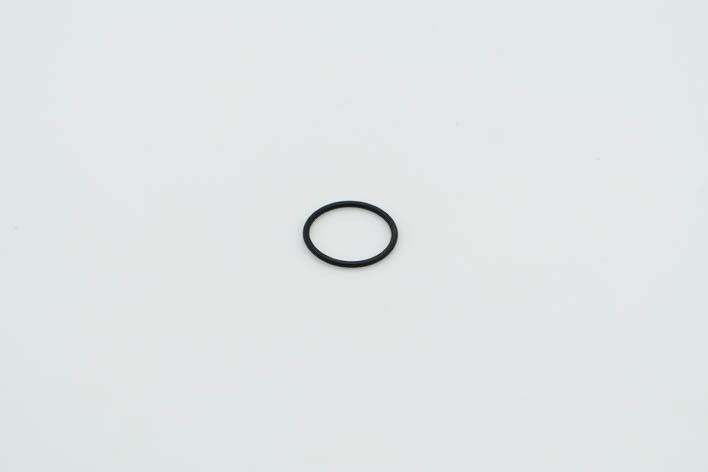

O-RING D=18X1.5

9023778
Puch
Pin Unpin
2.00
(excl. VAT.)
Available
+-
13

THREADED PIN

7101245771
Puch
Pin Unpin
1.54
(excl. VAT.)
Available
+-
14

PLUG

9009883
Puch
Pin Unpin
4.92
(excl. VAT.)
Available
+-
15
1.52
(excl. VAT.)
Available
+-
16

SEALING

7101245671
Puch
Pin Unpin
2.37
(excl. VAT.)
Available
+-
17

SEAL RING D=22X27X1.5-CU

D076030190
Puch
Pin Unpin
18

LOCKING SCREW M22X1.5

7101324132
Puch
Pin Unpin
5.95
(excl. VAT.)
Available
+-
19

COVER

7101245751
Puch
Pin Unpin
18.25
(excl. VAT.)
Available
+-
20

LOCK PLATE

9003601
Puch
Pin Unpin
3.99
(excl. VAT.)
Available
+-
21

HEXAGON SCREW M6X16-8.8

9101050060-04
Puch
Pin Unpin
1.26
(excl. VAT.)
Available
+-
22

CYLINDER PIN 13M6X30

9014885
Puch
Pin Unpin
2.08
(excl. VAT.)
Available
+-
23

PIN SCREW M8X75-8.8

9001978
Puch
Pin Unpin
3.35
(excl. VAT.)
Available
+-
24
2.20
(excl. VAT.)
Available
+-
25

PLUG M22X1.5

D009080012
Puch
Pin Unpin
2.54
(excl. VAT.)
Available
+-
26

FIXING STUD

9001977
Puch
Pin Unpin
1.98
(excl. VAT.)
Available
+-
27

SCREW M8X30-8.8

3040170080-27
Pin Unpin
1.76
(excl. VAT.)
Available
+-
28

SPRING WASHER A8

9120040081-02
Puch
Pin Unpin
1.13
(excl. VAT.)
Available
+-
29

HEXAGON NUT M8

3040320080-06
Puch
Pin Unpin
1.86
(excl. VAT.)
Available
+-
30

FIXING STUD

9001972
Puch
Pin Unpin
2.88
(excl. VAT.)
Available
+-
31

BUSH

7101245691
Puch
Pin Unpin
13.04
(excl. VAT.)
Available
+-
32

PLUG

7101225681
Puch
Pin Unpin
1.25
(excl. VAT.)
Available
+-
