Pinzgauer
Pinzgauer Turbo D 716-718 (austrian army)
Body

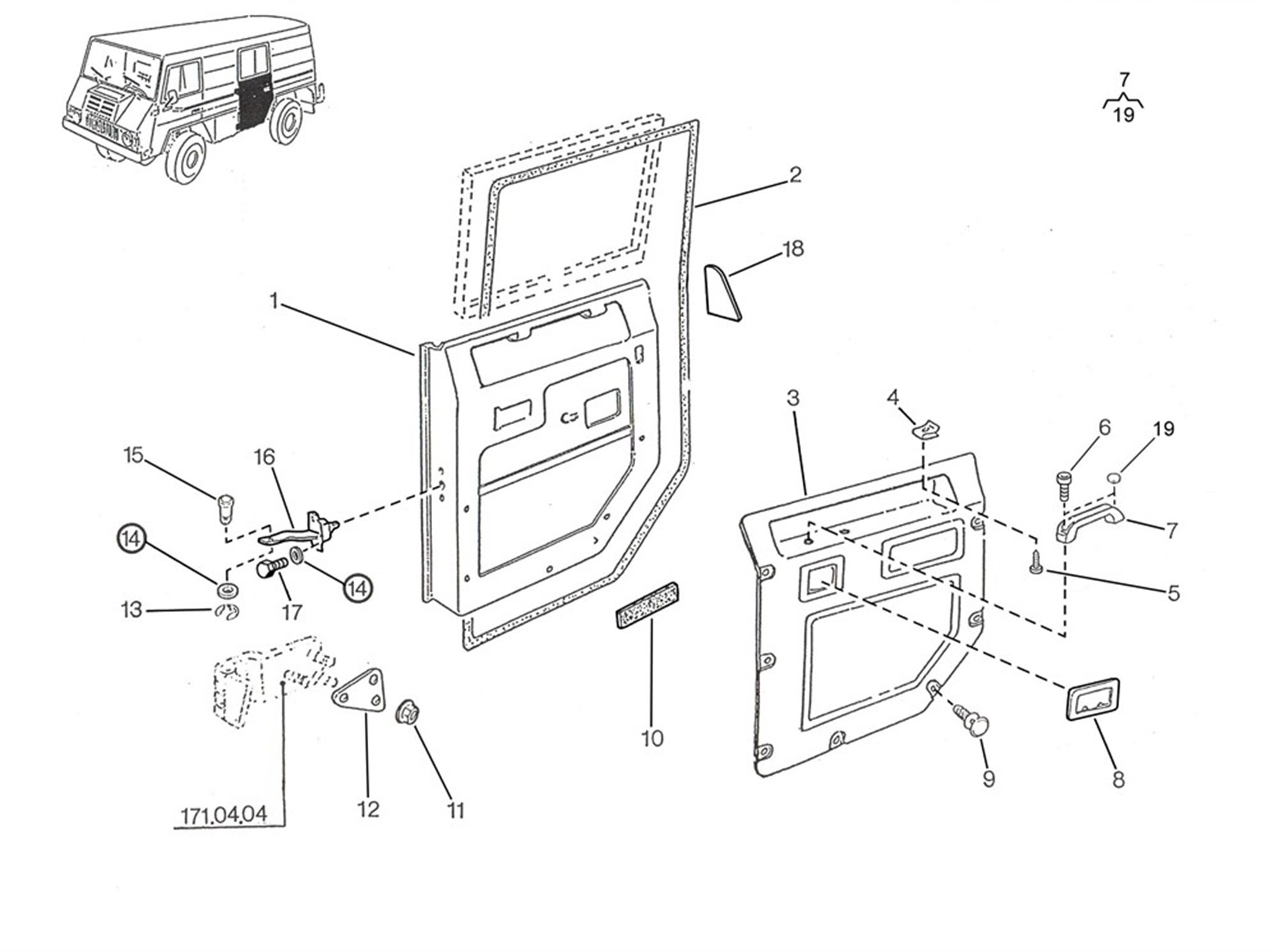

Rear side door
back to overview
Body
Engine & Gearbox casing
Radiator casing
Plateau
Plateau front panel
Platform foot tub
Plateau sheet metal A, C, F, P
Plateau sheet metal B, D, E
Platform side panels
Floor plates
Covers
Sludge protection V-belt P
Upper structure A, C, F, P
Side panels B, D
Side panels F
Top frame B
Top frame D, E
Tarpaulin cover B, D, E
Convertible top accessories B, D, E
Lashings
Side door in front
Front door fittings, lock set
Upper door part in front
Rear side door
Side door fittings A, C, F, P
Upper part of the door at the side A, C, F, P
Rear door A, B, C, D, F, P
Upper part of the rear door B, D
Rear door lock A, B, C, D, F, P
Door holder A, B, C, D, F, P
Side glazing A, C, F, P
Rear glazing A, B, C, D, F, P
Door glazing in front
Windshield
Rearview mirror
Seats in front
Rear seats A, C, F, P
Seatbench B, D
Seatbelts
Headrests
Radio table A, C, P
Sun visor
Glove box
Load backrest
Blackout A, C, F, P
Soundproofing driver's compartment
Soundproofing plateau at the rear
Sound insulation body A, C, F, P
Headlining A, C, F, P
Side paneling A, C, F, P
Flooring A, C, F, P
Engine cover
Instrument panel trim
Side panel P
Load sliding device F
Canister holder B, D, F
Fire extinguisher holder
Rifle mount A, B, C, D, F, P
Jack holder, trowel, breakdown triangle
SAN box holder
Schanz tool holder
Antenna support
Wheel chock holder
Battery and tool box
Build-in box A, C, F, P
Toolbox A, C, F, P
Additional heater box D5W P
1
DOOR LEFT REAR
Artikel-Nr
7181760272-55
Pin
Unpin
No purchase possible
1
DOOR RIGHT REAR
Artikel-Nr
7181760262-55
Pin
Unpin
No purchase possible
2

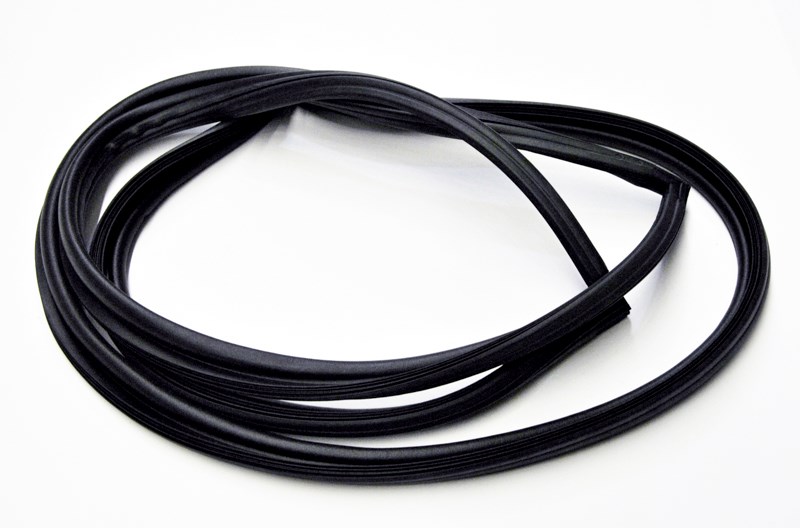

GASKET FOR DOOR,REAR-LEFT
Artikel-Nr
7181760810
Puch
Pin
Unpin
€
174.83
(excl.
VAT.)
Available
+
-
2

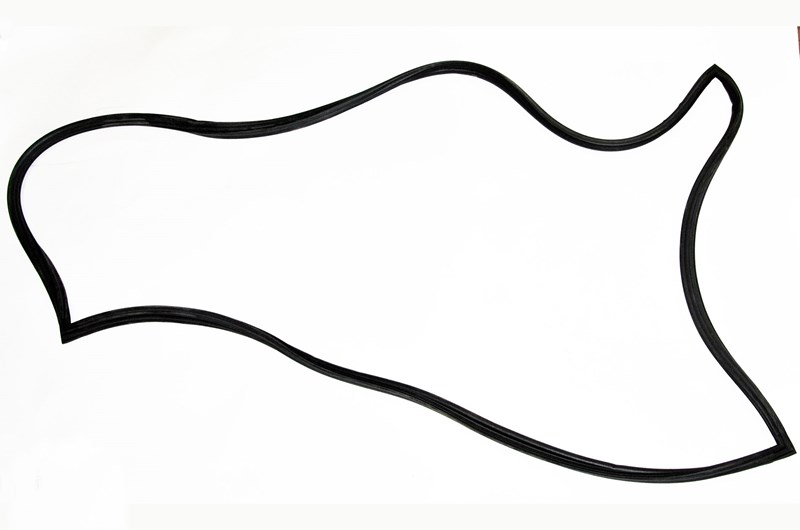

GASKET FOR DOOR,RIGHT
Artikel-Nr
7181760800
Puch
Pin
Unpin
€
108.25
(excl.
VAT.)
Available
+
-
3

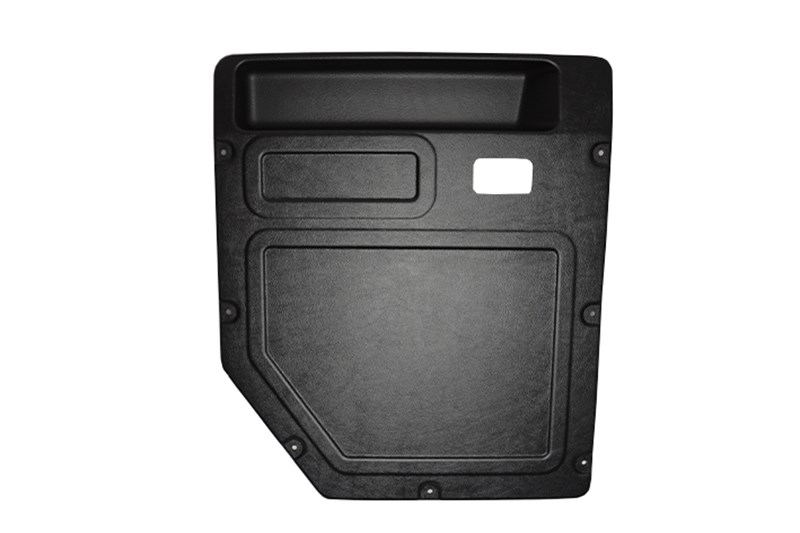

COVERING REAR LEFT
Artikel-Nr
7181760231
Puch
Pin
Unpin
€
124.92
(excl.
VAT.)
Available
+
-
3

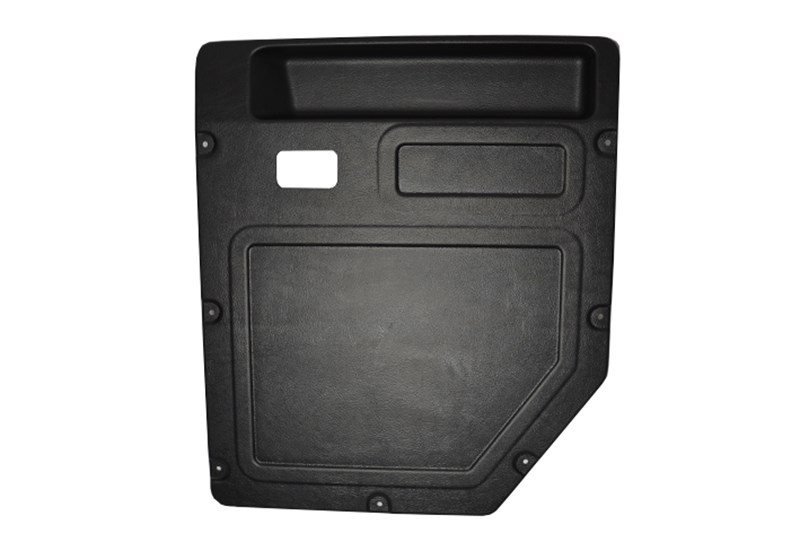

COVERING REAR RIGHT
Artikel-Nr
7181760221
Puch
Pin
Unpin
€
124.92
(excl.
VAT.)
Available
+
-
4
SNAP NUT
Artikel-Nr
9002503
Puch
Pin
Unpin
€
1.21
(excl.
VAT.)
Available
+
-
5
SCREW 4.2x13
Artikel-Nr
0000000004-53
Pin
Unpin
€
1.67
(excl.
VAT.)
Available
+
-
6
SCREW
Artikel-Nr
0079840060-36
Pin
Unpin
Price on request
7
PULLING HANDLE
Artikel-Nr
7161760190
Puch
Pin
Unpin
€
3.25
(excl.
VAT.)
Available
+
-
8
ROSETTE BLACK
Artikel-Nr
3097660225-9051
Puch
Pin
Unpin
€
3.48
(excl.
VAT.)
Available
+
-
9
EXPANDING RING
Artikel-Nr
4609900092-9051
Puch
Pin
Unpin
€
2.63
(excl.
VAT.)
Available
+
-
10
SEALING STRAP 3X20 MM
Artikel-Nr
9010524-07
Pin
Unpin
€
2.47
(excl.
VAT.)
Available
+
-
11
LOCK NUT M8
Artikel-Nr
N141630012
Puch
Pin
Unpin
€
1.32
(excl.
VAT.)
Available
+
-
12
PLATE
Artikel-Nr
7161760701
Puch
Pin
Unpin
Price on request
13
LOCK WASHER
Artikel-Nr
0067990050-04
Pin
Unpin
€
1.98
(excl.
VAT.)
Available
+
-
14
WASHER 6.4X12X1.6MM
Artikel-Nr
0001250064-49
Puch
Pin
Unpin
€
1.45
(excl.
VAT.)
Available
+
-
15
BOLT
Artikel-Nr
4609915207
Puch
Pin
Unpin
€
3.90
(excl.
VAT.)
Available
+
-
16
DOOR CATCH
Artikel-Nr
7161760580
Puch
Pin
Unpin
€
174.12
(excl.
VAT.)
Available
+
-
17
HEXAGON SCREW M6X12-8.8
Artikel-Nr
3040170060-08
Puch
Pin
Unpin
€
1.25
(excl.
VAT.)
Available
+
-
19
CAP
Artikel-Nr
7161765501
Puch
Pin
Unpin
€
2.08
(excl.
VAT.)
Available
+
-
