Pinzgauer
Pinzgauer Turbo D 716-718 (austrian army)
Body
Top frame D, E
back to overview
Body
Engine & Gearbox casing
Radiator casing
Plateau
Plateau front panel
Platform foot tub
Plateau sheet metal A, C, F, P
Plateau sheet metal B, D, E
Platform side panels
Floor plates
Covers
Sludge protection V-belt P
Upper structure A, C, F, P
Side panels B, D
Side panels F
Top frame B

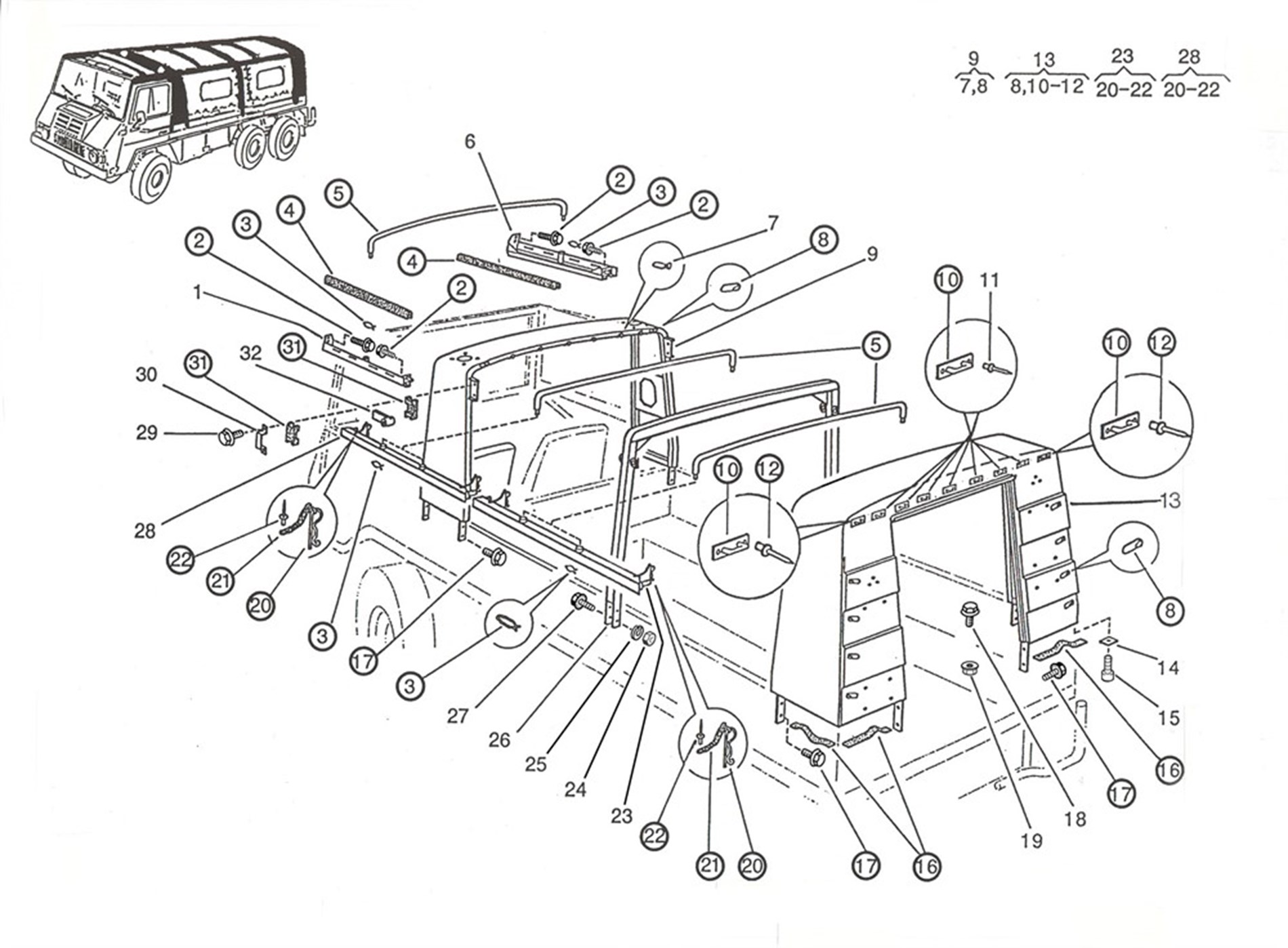

Top frame D, E
Tarpaulin cover B, D, E
Convertible top accessories B, D, E
Lashings
Side door in front
Front door fittings, lock set
Upper door part in front
Rear side door
Side door fittings A, C, F, P
Upper part of the door at the side A, C, F, P
Rear door A, B, C, D, F, P
Upper part of the rear door B, D
Rear door lock A, B, C, D, F, P
Door holder A, B, C, D, F, P
Side glazing A, C, F, P
Rear glazing A, B, C, D, F, P
Door glazing in front
Windshield
Rearview mirror
Seats in front
Rear seats A, C, F, P
Seatbench B, D
Seatbelts
Headrests
Radio table A, C, P
Sun visor
Glove box
Load backrest
Blackout A, C, F, P
Soundproofing driver's compartment
Soundproofing plateau at the rear
Sound insulation body A, C, F, P
Headlining A, C, F, P
Side paneling A, C, F, P
Flooring A, C, F, P
Engine cover
Instrument panel trim
Side panel P
Load sliding device F
Canister holder B, D, F
Fire extinguisher holder
Rifle mount A, B, C, D, F, P
Jack holder, trowel, breakdown triangle
SAN box holder
Schanz tool holder
Antenna support
Wheel chock holder
Battery and tool box
Build-in box A, C, F, P
Toolbox A, C, F, P
Additional heater box D5W P
1
VERDECKSTREBE.VORNE-LINKS
Artikel-Nr
7161750432-55
Pin
Unpin
Price on request
2
COMBINED SCREW
Artikel-Nr
B140010012
Puch
Pin
Unpin
€
1.30
(excl.
VAT.)
Available
+
-
3
CLAMPING SPRING
Artikel-Nr
7111751131-H3
Pin
Unpin
€
3.07
(excl.
VAT.)
Available
+
-
4
PROTECTIVE LATH B=10, H=14:5 MM
Artikel-Nr
7161770318-07
Pin
Unpin
€
5.89
(excl.
VAT.)
Available
+
-
5
CANVAS BOW
Artikel-Nr
7111751042-55
Pin
Unpin
€
165.53
(excl.
VAT.)
Available
+
-
6
COVER CROSS TIE FRONT RH
Artikel-Nr
7161750422-55
Pin
Unpin
Price on request
8
CARRIER F WHEEL
Artikel-Nr
7001743261
Puch
Pin
Unpin
€
5.78
(excl.
VAT.)
Available
+
-
9
UEBERROLLBOGEN.VORNE
Artikel-Nr
7161750602-55
Pin
Unpin
Price on request
9
UEBERROLLBOGEN.VORNE
Artikel-Nr
7161750802-55
Pin
Unpin
Price on request
10
CRAMP
Artikel-Nr
4617910230
Puch
Pin
Unpin
€
9.08
(excl.
VAT.)
Available
+
-
11
NIET BS 4X10-ST
Artikel-Nr
9100020042-13
Pin
Unpin
€
1.93
(excl.
VAT.)
Available
+
-
13
TURN OVER BOW REAR AUTRIAN ARMY GREEN
Artikel-Nr
7161750702-55
Pin
Unpin
No purchase possible
14
UNDERLAY 30/25X4
Artikel-Nr
7111750131
Puch
Pin
Unpin
€
1.80
(excl.
VAT.)
Available
+
-
16
SEALING STRAP 3X20 MM
Artikel-Nr
9010524-07
Pin
Unpin
€
2.47
(excl.
VAT.)
Available
+
-
17
RETAINING SCREW M10X20
Artikel-Nr
N141620022
Puch
Pin
Unpin
€
1.84
(excl.
VAT.)
Available
+
-
18
FIXING SCREW M8X20
Artikel-Nr
N141620042
Puch
Pin
Unpin
€
1.48
(excl.
VAT.)
Available
+
-
19
LOCK NUT M8
Artikel-Nr
N141630012
Puch
Pin
Unpin
€
1.32
(excl.
VAT.)
Available
+
-
20
SPRING CLIP D=4 MM
Artikel-Nr
7111640451-H3
Pin
Unpin
€
17.33
(excl.
VAT.)
Available
+
-
21
CHAIN G2X12X156
Artikel-Nr
7161751441
Puch
Pin
Unpin
€
1.95
(excl.
VAT.)
Available
+
-
22
BLIND RIVET A5X8
Artikel-Nr
9004061
Puch
Pin
Unpin
€
1.37
(excl.
VAT.)
Available
+
-
23
SOFT-TOP STAY REAR
Artikel-Nr
7171750302-55
Pin
Unpin
€
254.54
(excl.
VAT.)
Available
+
-
24
HEXAGON NUT M10-8 DIN934
Artikel-Nr
D009340032
Puch
Pin
Unpin
€
1.30
(excl.
VAT.)
Available
+
-
25
SPRING RING B10
Artikel-Nr
D001270033
Puch
Pin
Unpin
€
1.11
(excl.
VAT.)
Available
+
-
27
HEXAGON SCREW M10X60-8.8
Artikel-Nr
D009310248
Pin
Unpin
€
1.59
(excl.
VAT.)
Available
+
-
28
SOFT-TOP STAY FRONT
Artikel-Nr
7171750312-55
Pin
Unpin
Price on request
29
LOCK SCREW M8X14
Artikel-Nr
N141620062
Puch
Pin
Unpin
€
1.63
(excl.
VAT.)
Available
+
-
30
GABELLAGER
Artikel-Nr
7161750251-55
Pin
Unpin
Price on request
31
CLAMP
Artikel-Nr
7161750271
Puch
Pin
Unpin
€
27.83
(excl.
VAT.)
Available
+
-
32
SUPPORT
Artikel-Nr
7161750312
Puch
Pin
Unpin
€
134.66
(excl.
VAT.)
Available
+
-
