1

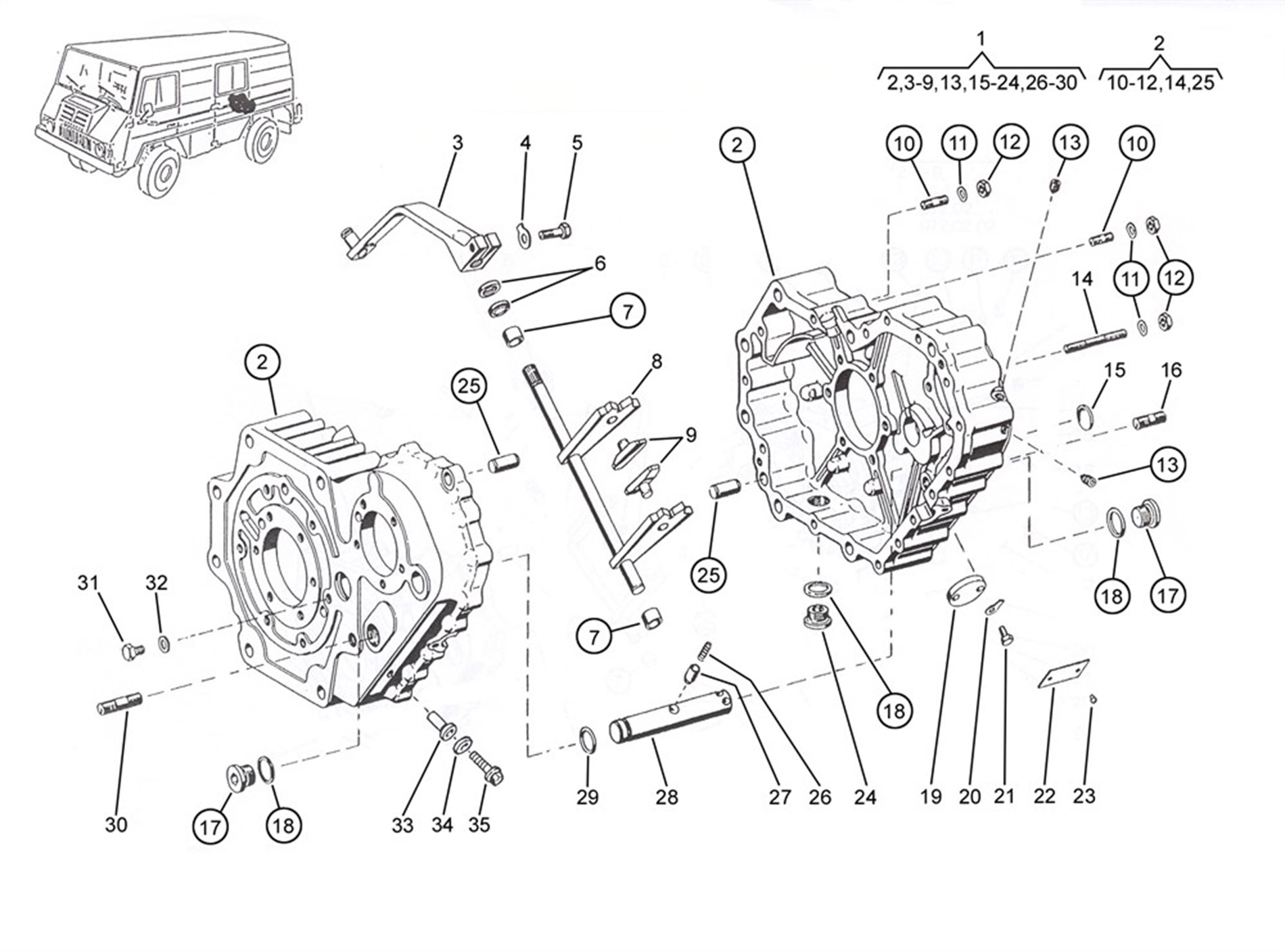

2-SPEED TRANSFER GEARBOX, CPL

7162230010
Puch Attention: NO oil filled!

due the transport, we cannot deliver the gearbox with oil filled, the oil level MUST be filled and checked after installation! (observe manufacturer information)

to ensure that you get the right part, we need your vehicle-identification-number please!

IMPORTANT:
Please send the entire old part to us for inspection, if the old part is complete you will receive a refund of your deposit.
In the event of an incomplete return, we will contact you immediately.
Pin Unpin
2,400.00 excl. € 800.00 Pledge
(excl. VAT.)
Available
+-
2

TRANSFER CASE HOUSING

7161232023
Pin Unpin
195.32
(excl. VAT.)
Available
+-
3

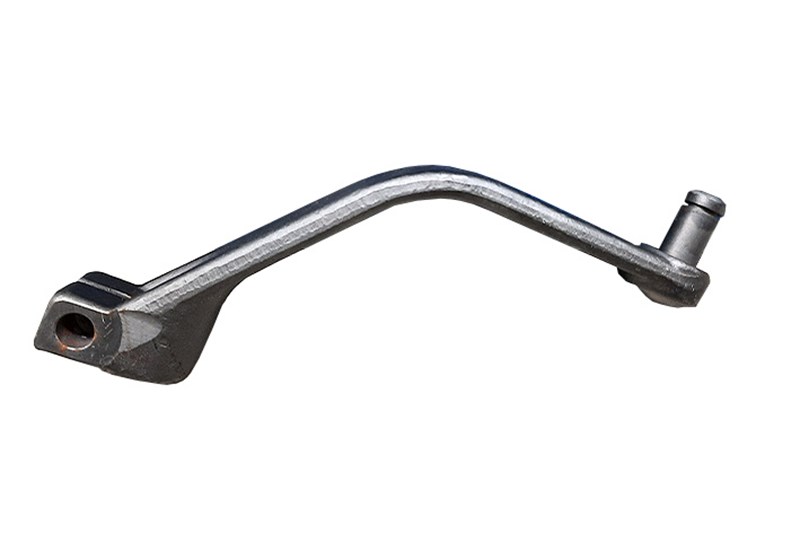

SELECTOR LEVER

7161245072
Puch
Pin Unpin
83.16
(excl. VAT.)
Available
+-
4

LOCKING PLATE

9003608
Puch
Pin Unpin
2.47
(excl. VAT.)
Available
+-
5

SCREW M8X30-8.8

3040170080-27
Pin Unpin
1.76
(excl. VAT.)
Available
+-
6

SEALING RING DC14x22x4

9023805
Puch
Pin Unpin
41.58
(excl. VAT.)
Available
+-
7

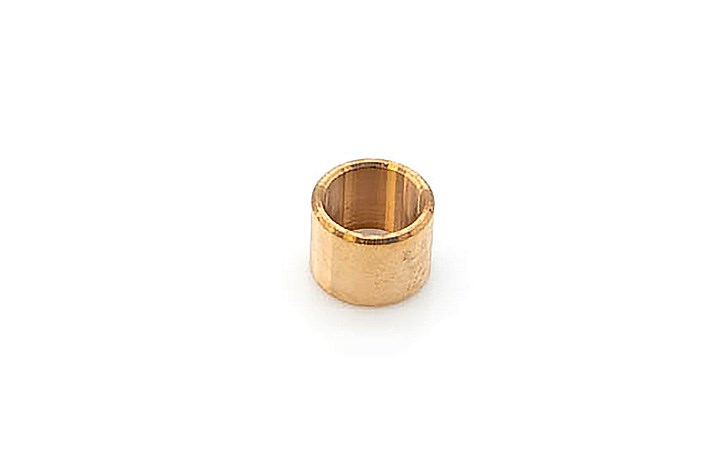

BUSH

7101245691
Puch
Pin Unpin
13.04
(excl. VAT.)
Available
+-
8

SELECTOR

7161245082
Puch
Pin Unpin
9

SLIDE PIECE

7101245641
Puch
Pin Unpin
8.25
(excl. VAT.)
Available
+-
11

SPRING WASHER M8

D001370043
Puch
Pin Unpin
0.09
(excl. VAT.)
Available
+-
12

HEXAGON NUT M8

3040320080-06
Puch
Pin Unpin
1.86
(excl. VAT.)
Available
+-
13

THREADED PIN

7101245771
Puch
Pin Unpin
1.54
(excl. VAT.)
Available
+-
14

PIN SCREW M8X75-8.8

9001978
Puch
Pin Unpin
3.35
(excl. VAT.)
Available
+-
15

SEALING DISC

7161245091
Puch
Pin Unpin
No purchase possible
16
1.52
(excl. VAT.)
Available
+-
17

PLUG M22X1.5

D009080012
Puch
Pin Unpin
2.54
(excl. VAT.)
Available
+-
18

SEAL RING D=22X27X1.5-CU

D076030190
Puch
Pin Unpin
19

COVER

7101245751
Puch
Pin Unpin
18.25
(excl. VAT.)
Available
+-
20

LOCK PLATE

9003601
Puch
Pin Unpin
3.99
(excl. VAT.)
Available
+-
21

HEXAGON SCREW M6X16-8.8

9101050060-04
Puch
Pin Unpin
1.26
(excl. VAT.)
Available
+-
22
2.50
(excl. VAT.)
Available
+-
23

GROOVED STUD 3X6

7161245111
Puch
Pin Unpin
1.25
(excl. VAT.)
Available
+-
24

LOCKING SCREW M22X1.5

7101324132
Puch
Pin Unpin
5.95
(excl. VAT.)
Available
+-
25

CYLINDER PIN 13M6X30

9014885
Puch
Pin Unpin
2.08
(excl. VAT.)
Available
+-
26

SPRING

7101245091
Puch
Pin Unpin
2.24
(excl. VAT.)
Available
+-
27

SLIDING STONE

7102245081
Puch
Pin Unpin
4.08
(excl. VAT.)
Available
+-
28

STOP BOLT

7161245121
Puch
Pin Unpin
41.58
(excl. VAT.)
Available
+-
29

O-RING D=18X1.5

9023778
Puch
Pin Unpin
2.00
(excl. VAT.)
Available
+-
30
2.20
(excl. VAT.)
Available
+-
31

SCREW M8X10-8.8

D009330512
Puch
Pin Unpin
1.16
(excl. VAT.)
Available
+-
32

SEAL RING A8X12-CU

D076030330
Puch
Pin Unpin
0.09
(excl. VAT.)
Available
+-
33

RIVET NUT AM6-3/5,5

N141350032
Puch
Pin Unpin
1.70
(excl. VAT.)
Available
+-
34

WASHER A6.5X11-AL

9013925
Puch
Pin Unpin
35

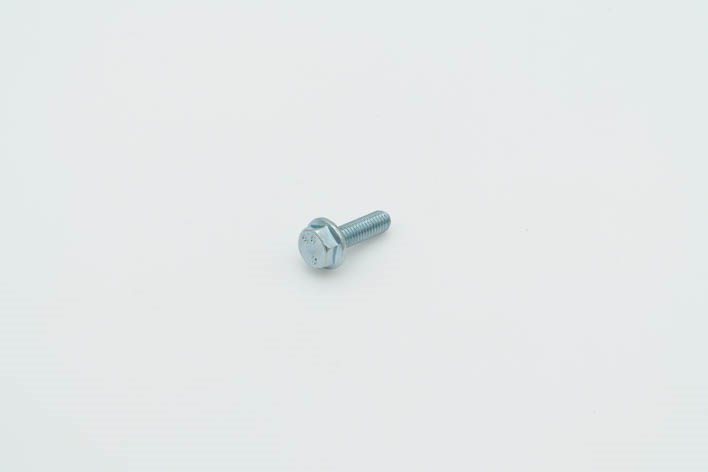

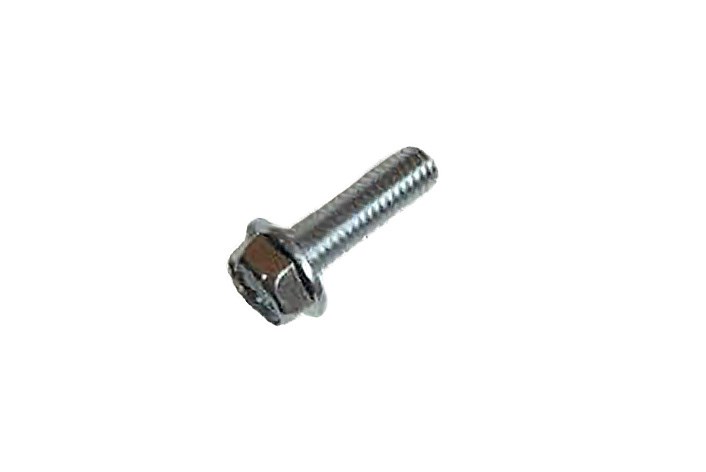

HEXAGON SCREW M6X20-8.8

D069210022
Puch
Pin Unpin
1.32
(excl. VAT.)
Available
+-
