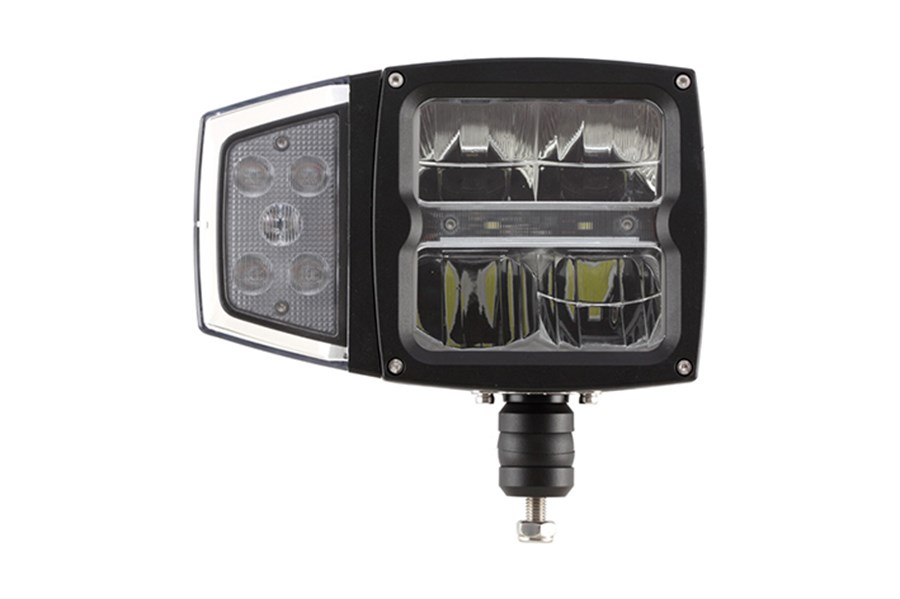

LED HEADLIGHT 58W 5500L WITH INDICATOR

item number 977PR-58E-005

• Total power: 58 watts

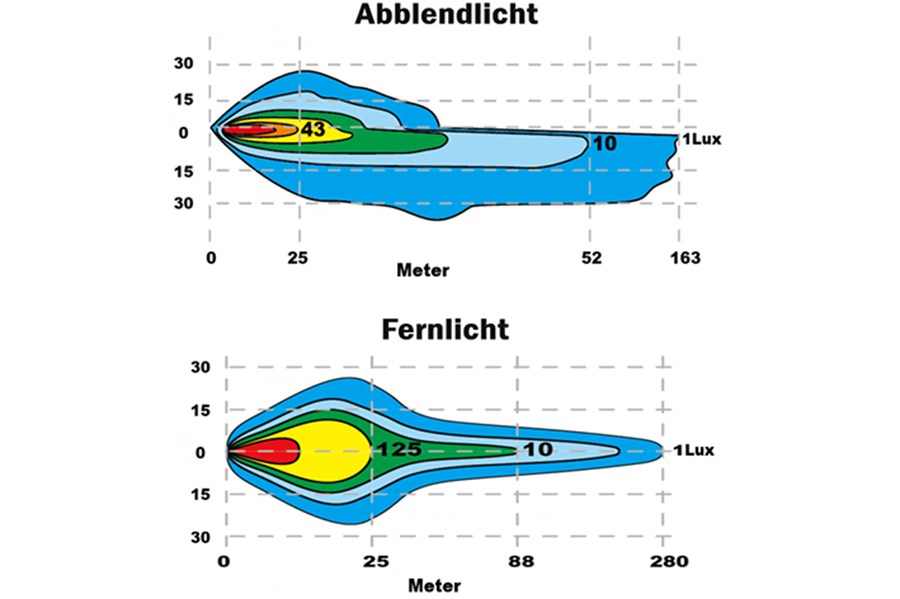

• incl. high and low beam (38W/20W)
• incl. position light (1.5W),
• incl. variably mountable indicators (20W)
• incl. anti-ice & snow heating function
• Luminous intensity: calculated 5,500 lumens/effective 5,000 lumens
• Degree of protection IP68 (waterproof)
• Working temperature: -40 to +60°C
• Supply voltage: 10-30V DC
• Low beam power consumption 1.6A at 12V/0.86A at 24V
• High beam power consumption 3.2A at 12V/1.6A at 24V
• Current consumption indicator 1.8A at 12V/0.8A at 24V
• Position light current consumption 0.1A at 12V/0.05A at 24V
• Power consumption heating function 1.9A at 12V/0.8A at 24V
• Powder-coated die-cast aluminum alloy housing (ADC12)
• High-quality special optical lens made of hardened glass
• Polycarbonate reflector
• Pre-assembled connector Deutsch connector (DT) 6-pin (incl. counterpart)
• Watertight pressure equalization screw
• Over and under voltage protection
• Reverse polarity protection
• UV and vibration resistant
• Service life 50,000 operating hours

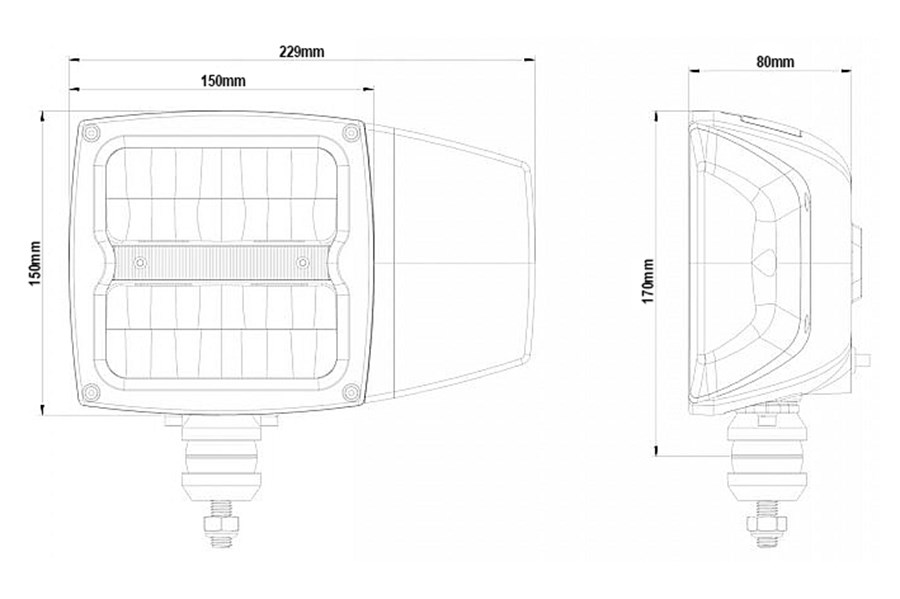

• Dimensions without bracket: 229x150x80mm
• Certificates: ECER112/R7/R10/R6, DOT, CE, RoHS Pin Unpin
